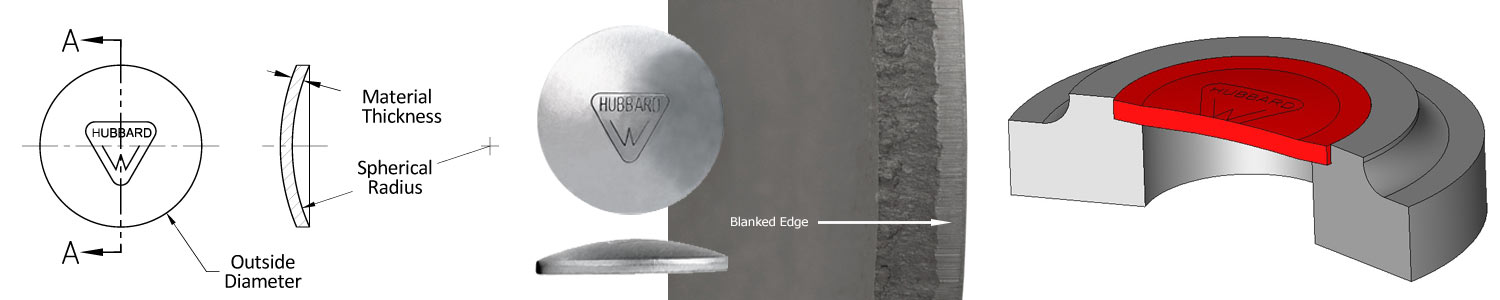

Blanked edge Welch Plugs are engineered to seal core holes in castings with plug sizes ranging from 3mm - 100mm.

  • Good for limited depth and lower-pressure applications.
  • Best used as cover or to retain liquid at low or no pressure.



1 - 200 of 514 | Results Per Page | View | Unit of Measure
1 2 3
Request Information Compare Items
Clear Filter

Hole Diameter (mm)

Outside Diameter (mm)

Material Type

Part Number

Hole Diameter

Outside Diameter

Spherical Radius

Material Type

Material Thickness

N/A 3.099 mm N/A 3 mm N/A 3 mm N/A Aluminum N/A 0.81 mm
N/A 3.099 mm N/A 3 mm N/A 3 mm N/A Brass N/A 0.81 mm
N/A 3.099 mm N/A 3 mm N/A 3 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 3.099 mm N/A 3 mm N/A 3 mm N/A Cold Rolled Steel N/A 1 mm
N/A 3.099 mm N/A 3 mm N/A 3 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 3.099 mm N/A 3 mm N/A 3 mm N/A Cold Rolled Steel N/A 1 mm
N/A 3.099 mm N/A 3 mm N/A 3 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 3.099 mm N/A 3 mm N/A 3 mm N/A Cold Rolled Steel N/A 1 mm
N/A 4.089 mm N/A 4 mm N/A 4 mm N/A Aluminum N/A 0.81 mm
N/A 4.089 mm N/A 4 mm N/A 4 mm N/A Brass N/A 0.81 mm
N/A 4.089 mm N/A 4 mm N/A 4 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 4.089 mm N/A 4 mm N/A 4 mm N/A Cold Rolled Steel N/A 1 mm
N/A 4.089 mm N/A 4 mm N/A 4 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 4.089 mm N/A 4 mm N/A 4 mm N/A Cold Rolled Steel N/A 1 mm
N/A 4.089 mm N/A 4 mm N/A 4 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 4.089 mm N/A 4 mm N/A 4 mm N/A Cold Rolled Steel N/A 1 mm
N/A 5.105 mm N/A 5 mm N/A 4.24 mm N/A Aluminum N/A 0.81 mm
N/A 5.105 mm N/A 5 mm N/A 4.24 mm N/A Brass N/A 0.81 mm
N/A 5.105 mm N/A 5 mm N/A 4.24 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 5.105 mm N/A 5 mm N/A 4.24 mm N/A Cold Rolled Steel N/A 1 mm
N/A 5.105 mm N/A 5 mm N/A 4.24 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 5.105 mm N/A 5 mm N/A 4.24 mm N/A Cold Rolled Steel N/A 1 mm
N/A 5.105 mm N/A 5 mm N/A 4.24 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 5.105 mm N/A 5 mm N/A 4.24 mm N/A Cold Rolled Steel N/A 1 mm
N/A 6.096 mm N/A 6 mm N/A 7 mm N/A Aluminum N/A 0.81 mm
N/A 6.096 mm N/A 6 mm N/A 7 mm N/A Brass N/A 0.81 mm
N/A 6.096 mm N/A 6 mm N/A 7 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 6.096 mm N/A 6 mm N/A 7 mm N/A Cold Rolled Steel N/A 1 mm
N/A 6.096 mm N/A 6 mm N/A 7 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 6.096 mm N/A 6 mm N/A 7 mm N/A Cold Rolled Steel N/A 1 mm
N/A 6.096 mm N/A 6 mm N/A 7 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 6.096 mm N/A 6 mm N/A 7 mm N/A Cold Rolled Steel N/A 1 mm
N/A 8.128 mm N/A 8 mm N/A 9 mm N/A Aluminum N/A 0.81 mm
N/A 8.128 mm N/A 8 mm N/A 9 mm N/A Aluminum N/A 1.63 mm
N/A 8.128 mm N/A 8 mm N/A 9 mm N/A Brass N/A 0.81 mm
N/A 8.128 mm N/A 8 mm N/A 9 mm N/A Brass N/A 1.63 mm
N/A 8.128 mm N/A 8 mm N/A 9 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 8.128 mm N/A 8 mm N/A 9 mm N/A Cold Rolled Steel N/A 1 mm
N/A 8.128 mm N/A 8 mm N/A 9 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 8.128 mm N/A 8 mm N/A 9 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 8.128 mm N/A 8 mm N/A 9 mm N/A Cold Rolled Steel N/A 1 mm
N/A 8.128 mm N/A 8 mm N/A 9 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 8.128 mm N/A 8 mm N/A 9 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 8.128 mm N/A 8 mm N/A 9 mm N/A Cold Rolled Steel N/A 1 mm
N/A 8.128 mm N/A 8 mm N/A 9 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 8.128 mm N/A 8 mm N/A 9 mm N/A Stainless Steel N/A 0.81 mm
N/A 8.128 mm N/A 8 mm N/A 9 mm N/A Stainless Steel N/A 1.57 mm
N/A 10.135 mm N/A 10 mm N/A 12 mm N/A Aluminum N/A 0.81 mm
N/A 10.135 mm N/A 10 mm N/A 12 mm N/A Aluminum N/A 1.63 mm
N/A 10.135 mm N/A 10 mm N/A 12 mm N/A Brass N/A 0.81 mm
N/A 10.135 mm N/A 10 mm N/A 12 mm N/A Brass N/A 1.63 mm
N/A 10.135 mm N/A 10 mm N/A 12 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 10.135 mm N/A 10 mm N/A 12 mm N/A Cold Rolled Steel N/A 1 mm
N/A 10.135 mm N/A 10 mm N/A 12 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 10.135 mm N/A 10 mm N/A 12 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 10.135 mm N/A 10 mm N/A 12 mm N/A Cold Rolled Steel N/A 1 mm
N/A 10.135 mm N/A 10 mm N/A 12 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 10.135 mm N/A 10 mm N/A 12 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 10.135 mm N/A 10 mm N/A 12 mm N/A Cold Rolled Steel N/A 1 mm
N/A 10.135 mm N/A 10 mm N/A 12 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 10.135 mm N/A 10 mm N/A 12 mm N/A Stainless Steel N/A 0.81 mm
N/A 10.135 mm N/A 10 mm N/A 12 mm N/A Stainless Steel N/A 1.57 mm
N/A 12.116 mm N/A 12 mm N/A 16 mm N/A Aluminum N/A 0.81 mm
N/A 12.116 mm N/A 12 mm N/A 16 mm N/A Aluminum N/A 1.63 mm
N/A 12.116 mm N/A 12 mm N/A 16 mm N/A Brass N/A 0.81 mm
N/A 12.116 mm N/A 12 mm N/A 16 mm N/A Brass N/A 1.63 mm
N/A 12.116 mm N/A 12 mm N/A 16 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 12.116 mm N/A 12 mm N/A 16 mm N/A Cold Rolled Steel N/A 1 mm
N/A 12.116 mm N/A 12 mm N/A 16 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 12.116 mm N/A 12 mm N/A 16 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 12.116 mm N/A 12 mm N/A 16 mm N/A Cold Rolled Steel N/A 1 mm
N/A 12.116 mm N/A 12 mm N/A 16 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 12.116 mm N/A 12 mm N/A 16 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 12.116 mm N/A 12 mm N/A 16 mm N/A Cold Rolled Steel N/A 1 mm
N/A 12.116 mm N/A 12 mm N/A 16 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 12.116 mm N/A 12 mm N/A 16 mm N/A Stainless Steel N/A 0.81 mm
N/A 12.116 mm N/A 12 mm N/A 16 mm N/A Stainless Steel N/A 1.57 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Aluminum N/A 0.81 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Aluminum N/A 1.63 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Aluminum N/A 2 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Brass N/A 0.81 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Brass N/A 1.63 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Brass N/A 2 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Cold Rolled Steel N/A 1 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Cold Rolled Steel N/A 1 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Cold Rolled Steel N/A 1 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Stainless Steel N/A 0.81 mm
N/A 14.148 mm N/A 14 mm N/A 19 mm N/A Stainless Steel N/A 1.57 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Aluminum N/A 0.81 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Aluminum N/A 1.63 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Aluminum N/A 2 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Brass N/A 0.81 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Brass N/A 1.63 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Brass N/A 2 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Cold Rolled Steel N/A 1 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Cold Rolled Steel N/A 1 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Cold Rolled Steel N/A 1 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Stainless Steel N/A 0.81 mm
N/A 16.154 mm N/A 16 mm N/A 22 mm N/A Stainless Steel N/A 1.57 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Aluminum N/A 0.81 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Aluminum N/A 1.63 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Aluminum N/A 2 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Brass N/A 0.81 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Brass N/A 1.63 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Brass N/A 2 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Cold Rolled Steel N/A 1 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Cold Rolled Steel N/A 1 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Cold Rolled Steel N/A 1 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Stainless Steel N/A 0.81 mm
N/A 18.161 mm N/A 18 mm N/A 25 mm N/A Stainless Steel N/A 1.57 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Aluminum N/A 0.81 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Aluminum N/A 1.63 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Aluminum N/A 2 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Brass N/A 0.81 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Brass N/A 1.63 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Brass N/A 2 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Cold Rolled Steel N/A 1 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Hot Rolled Steel N/A 2.11 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Cold Rolled Steel N/A 1 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Hot Rolled Steel N/A 2.11 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Cold Rolled Steel N/A 1 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Hot Rolled Steel N/A 2.11 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Stainless Steel N/A 0.81 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Stainless Steel N/A 1.57 mm
N/A 20.142 mm N/A 20 mm N/A 28 mm N/A Stainless Steel N/A 2.11 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Aluminum N/A 0.81 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Aluminum N/A 1.63 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Aluminum N/A 2 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Brass N/A 0.81 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Brass N/A 1.63 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Brass N/A 2 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Cold Rolled Steel N/A 1 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Hot Rolled Steel N/A 2.11 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Cold Rolled Steel N/A 1 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Hot Rolled Steel N/A 2.11 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Cold Rolled Steel N/A 1 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Hot Rolled Steel N/A 2.11 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Stainless Steel N/A 0.81 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Stainless Steel N/A 1.57 mm
N/A 22.149 mm N/A 22 mm N/A 30 mm N/A Stainless Steel N/A 2.11 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Aluminum N/A 0.81 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Aluminum N/A 1.63 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Aluminum N/A 2 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Brass N/A 0.81 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Brass N/A 1.63 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Brass N/A 2 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Cold Rolled Steel N/A 1 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Hot Rolled Steel N/A 2.11 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Cold Rolled Steel N/A 1 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Hot Rolled Steel N/A 2.11 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Cold Rolled Steel N/A 1 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Hot Rolled Steel N/A 1.57 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Hot Rolled Steel N/A 2.11 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Stainless Steel N/A 0.81 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Stainless Steel N/A 1.57 mm
N/A 25.146 mm N/A 25 mm N/A 34 mm N/A Stainless Steel N/A 2.11 mm
N/A 28.143 mm N/A 28 mm N/A 40 mm N/A Aluminum N/A 0.81 mm
N/A 28.143 mm N/A 28 mm N/A 40 mm N/A Aluminum N/A 1.63 mm
N/A 28.143 mm N/A 28 mm N/A 40 mm N/A Aluminum N/A 2 mm
N/A 28.143 mm N/A 28 mm N/A 40 mm N/A Brass N/A 0.81 mm
N/A 28.143 mm N/A 28 mm N/A 40 mm N/A Brass N/A 1.63 mm
N/A 28.143 mm N/A 28 mm N/A 40 mm N/A Brass N/A 2 mm
N/A 28.143 mm N/A 28 mm N/A 40 mm N/A Cold Rolled Steel N/A 0.81 mm
N/A 28.143 mm N/A 28 mm N/A 40 mm N/A Cold Rolled Steel N/A 1 mm
N/A 28.143 mm N/A 28 mm N/A 40 mm N/A Hot Rolled Steel N/A 1.57 mm
1 - 200 of 514 | Results Per Page | View | Unit of Measure
1 2 3
